About CCI Vietnam
CCI Vietnam Co., Ltd, located in Nui Thanh, Quang Nam, Vietnam, is a global multinational company that produces electrical components.
The Challenge
- Chiller required cleaning every 3 months due to limescale buildup
- Scale accumulation at cooling tower and condenser tubes
- Reliance on scale inhibitor chemicals
12 Vulcan Units Across Two Factories
CCI Vietnam installed a comprehensive Vulcan system across their facilities to address scale problems without chemicals.
3
Vulcan S250
2 (Factory CCIPY) + 1 (Factory CCI)
3
Vulcan S150
Factory CCI VN
6
Vulcan S25
Factory CCI VN
Total: 12 Vulcan Units | 3 Different Models
Measurable Results
Without Scale Inhibitor Chemicals
CCI Vietnam does not utilise scale inhibitor chemicals. As a result, the chiller must be cleaned on a quarterly basis.
The Test: We installed a Vulcan S150 for one chiller system eight months after that, and compared it to other similar systems.
With Scale Inhibitor Chemicals
CCI Vietnam utilises a scale inhibitor chemical. In response, we proceeded with the installation of the Vulcan S250.
The Result: Effectively eliminated the need for scale inhibitor chemicals, while maintaining the use of 50% biocide chemicals.
Comparison: This approach has been compared with another system over a period of 15 months, with similar outcomes observed.
Visual Results: Before & After Vulcan

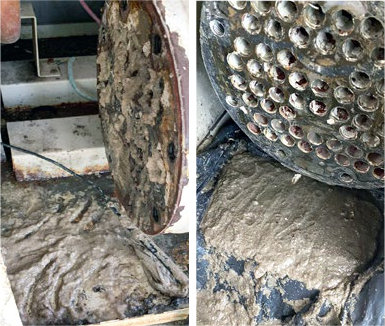

Before Vulcan
Limescale deposits after 3 months without the use of Vulcan
Chiller required cleaning every 3 months

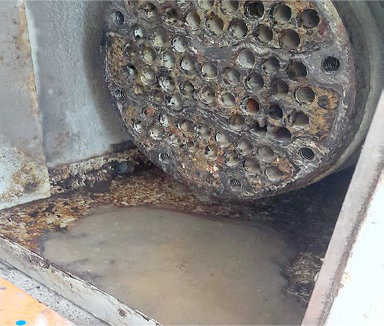

After Vulcan
Clean results after 8 months with the use of Vulcan
Chiller cleaning interval extended significantly
Installation Gallery

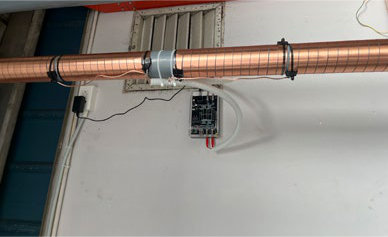

Vulcan S25 installation

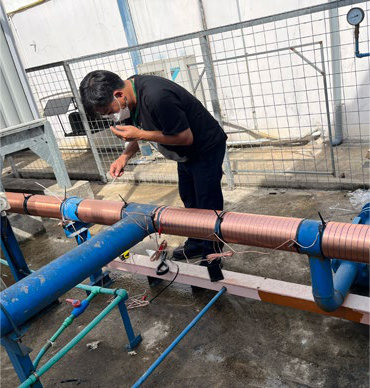

Vulcan S150 installation

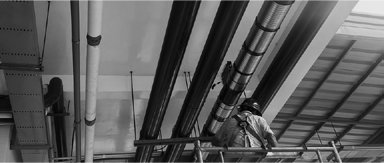

Pipe isolated after S150 installation

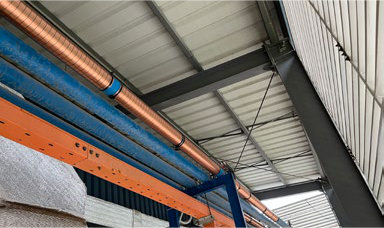

Pipe isolated after S150 installation

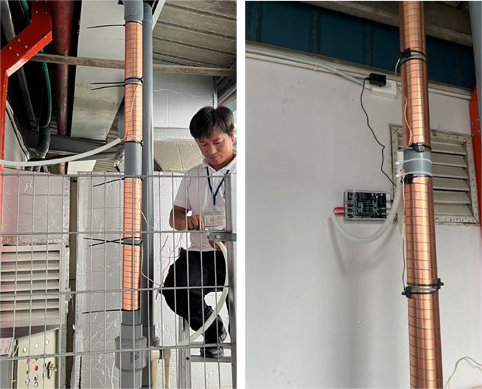

Vulcan S25 installation

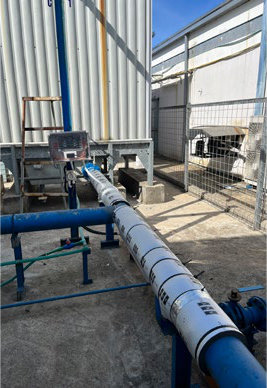

Vulcan S150 installation
3 → 8+
Chiller cleaning interval (months)
100%
Scale inhibitor chemicals eliminated
12
Vulcan units installed
Vulcan Models Used
| Model | Quantity | Max Pipe Diameter | Max Flow Rate | Application |
|---|---|---|---|---|
| Vulcan S250 | 3 | 10 inches | 1,540 GPM | Large chiller systems, main cooling |
| Vulcan S150 | 3 | 8 inches | 790 GPM | Medium chiller systems, cooling towers |
| Vulcan S25 | 6 | 4 inches | 130 GPM | Smaller lines, auxiliary equipment |
All models feature zero maintenance and work on all pipe materials.
Chemical-Free Industrial Scale Prevention
CCI Vietnam demonstrates that large-scale industrial facilities can eliminate chemical scale inhibitors with Vulcan. Twelve units across three models extended chiller cleaning intervals from 3 to 8+ months while maintaining performance.
